20ft Expandable Tiny Home

Fold-out prefab home · Spacious open living · Fast setup · Ideal for flexible living

A smart relocatable home that expands your space

Our 20ft Expandable Tiny Home is designed for customers who want the convenience of compact transport dimensions with the comfort of a much larger living area once installed. Delivered prefabricated and ready to unfold, this model opens out into a spacious home suitable for everyday living, holiday accommodation, backyard placement, site housing or flexible investment use.

With practical internal zoning, a functional kitchen, dedicated dining and living area, private bathroom, and one or two bedroom options depending on layout, this expandable home offers a strong balance of comfort, flexibility and efficient use of space.

Why choose our 20ft Expandable

Expands to a spacious interior

Compact for transport, then unfolds to approximately 36–38m² of usable interior living space.

Flexible layout options

Available in practical layouts such as Camper and Wyong, with 1 or 2 bedrooms, living, dining, kitchen and toilet.

Prefab and installation-ready

Delivered prefabricated and ready to be unfolded and installed, reducing onsite construction time and disruption.

Built for Australian use

Includes Australian standard electrical supply items, aluminium windows and doors, and durable insulated wall and roof systems.

Compact transport size, generous living feel

With external dimensions of approximately 5.94m long, 6.42m wide and 3.07m high once opened, and an internal ceiling height of 2.4m, the 20ft Expandable creates a practical full-height living environment that feels open and usable, not cramped.

Product highlights

Model type	20ft Full Expandable Tiny Home
Available layouts	Camper / Wyong
External size	Approx. 5.94m (L) × 6.42m (W) × 3.07m (H)
Internal size	Approx. 5.28m (L) × 6.30m (W) × 2.40m (H)
Internal area	Approx. 36–38m²
Weight	Approx. 4,000kg
Configuration	1 or 2 bedrooms · 1 toilet · kitchen · dining · living

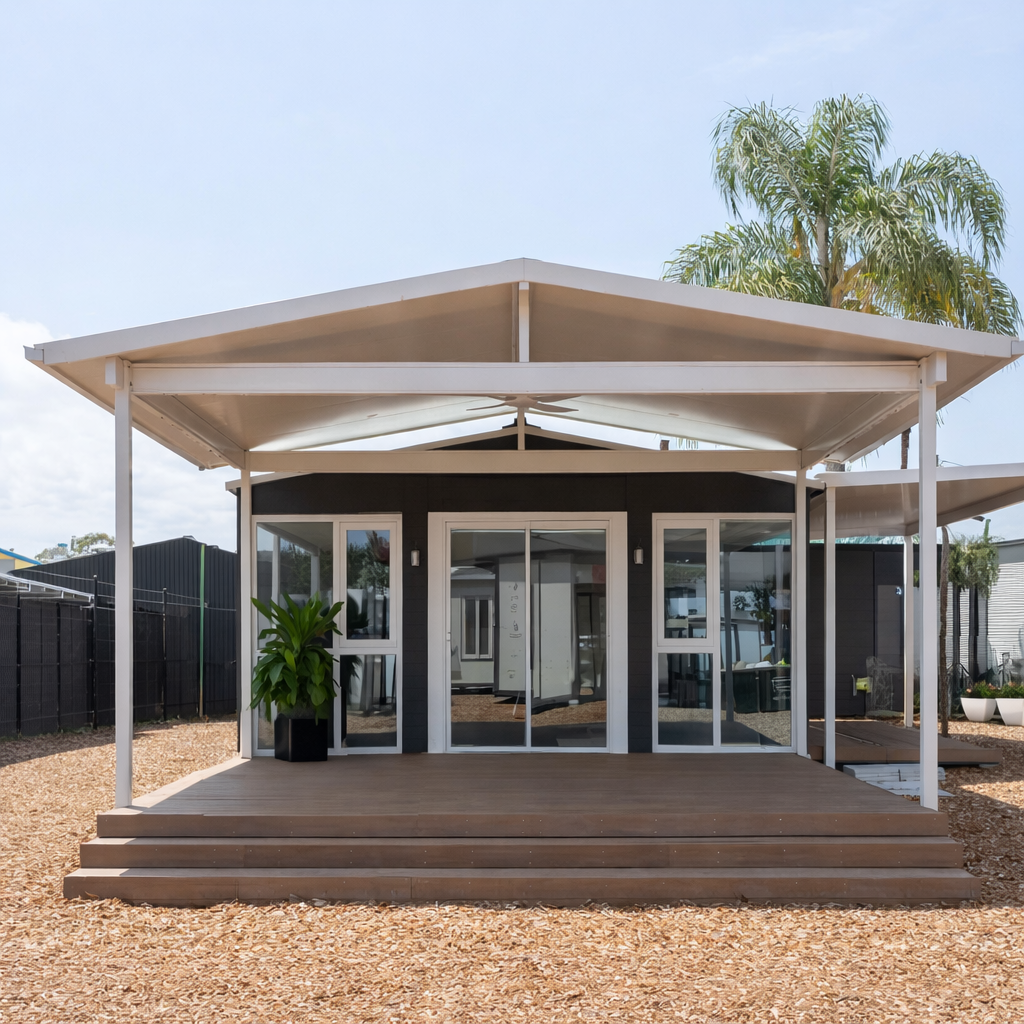

Optional add-on	Patio & deck (approx. 5.94m × 2.4m)

Designed for practical everyday use

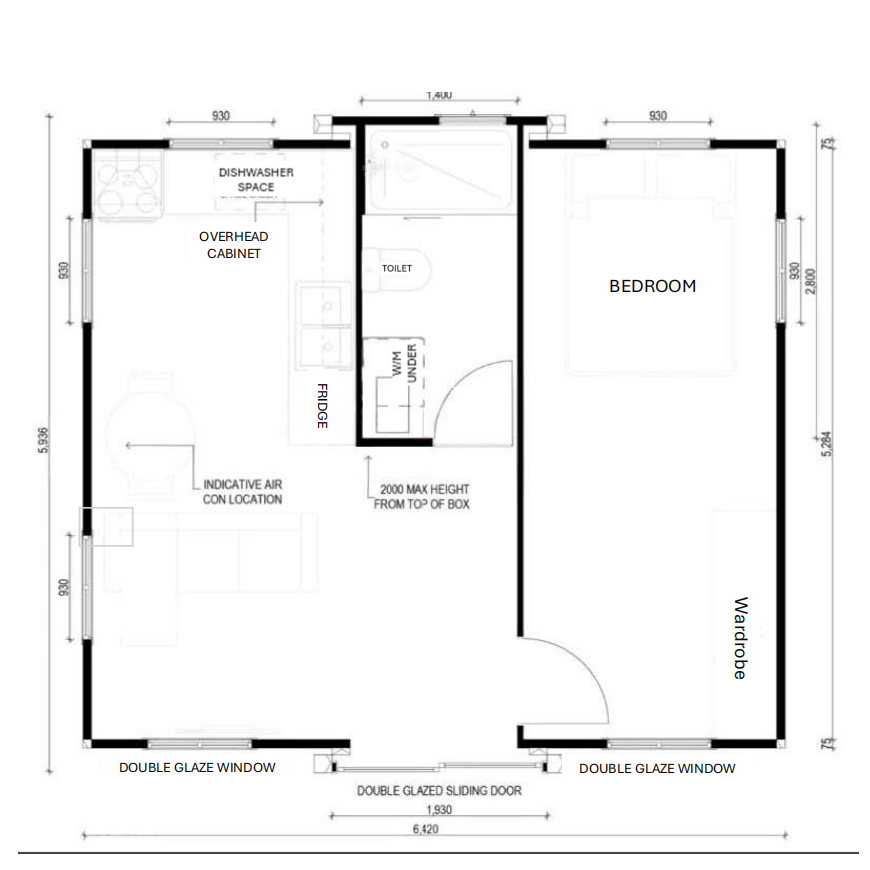

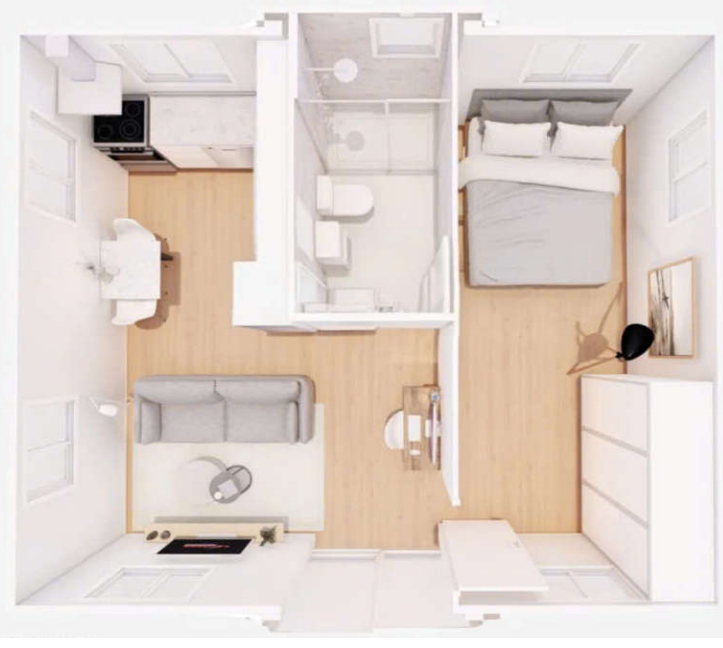

The Camper layout focuses on a large main room with generous wardrobe and storage, while the Wyong layout provides two bedrooms, with one room able to convert into a study if needed.

Both layouts are designed to support real living, with kitchen, dining, lounge and bathroom functions all clearly integrated into the home.

Built with durable insulated materials

• Galvanised steel frame, epoxy treated and acrylic painted

• 75mm EPS wall panels

• 50mm insulated roof with steel finish

• Magnesium composite sub-floor

• Waterproof, rot-proof and termite-resistant base

• 4mm SPC timber pattern flooring

• Aluminium framed double-glazed sliding windows

• Flyscreens included on all windows

• Sliding glass lockable aluminium entry door

• Privacy glass bathroom door

Kitchen features

The kitchen is designed for practical use, with stainless steel sink and mixer tap, engineered stone benchtop with zero silica, and provision for dishwasher, cooker, rangehood and fridge.

• Stainless steel sink with mixer tap
• Engineered stone benchtop
• Soft-close kitchen cabinets and overhead cabinets
• Provision for dishwasher, cooker, rangehood and fridge

Bathroom features

The bathroom includes a full-width shower zone with acrylic shower base, rain maker shower head, toughened glass sliding shower door, vanity with porcelain sink and chrome mixers.

• Grey floor tiles
• Acrylic shower base
• Rain maker shower head
• Toughened glass sliding shower door
• Vanity with porcelain sink
• Chrome hot & cold water mixers

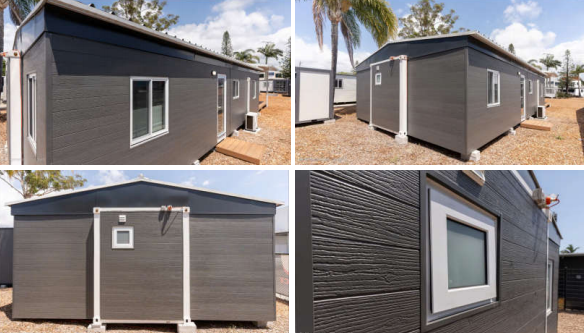

Interior & exterior display

3.5T dual axle trailer base

The optional 3.5T dual axle trailer provides a transport-ready platform for 20ft expandables and includes electric brakes with breakaway system, heavy duty leaf suspension, LED tail lights, 50mm ball hitch, hand brake and Australian-made Duragal steel construction.

This makes the home easier to relocate and suitable for movable dwelling applications.

Delivery, unfolding & installation

Unfolding instructions and video are provided. Customers can choose DIY installation, with footing plans supplied, while plumbing and electrical work must be completed by licensed trades.

• Crane truck self-unload available depending on site reach
• Tilt-tray unload requires straight-line access
• Forklift or crane unload may be required for some delivery methods
• Licensed plumber and electrician required for final connections

Purchase notes

The brochure pricing summary lists the 20ft expandable unit, optional pitch roof, installation, trailer and delivery separately. Final pricing may vary depending on configuration, site conditions, location and optional inclusions.

The owner is responsible for ensuring the installation site and foundation are ready before delivery and setup.

Expandable living made easy

This 20ft expandable tiny home is a flexible prefab housing solution for customers who want fast deployment, practical internal space, and a relocatable structure with modern finishes and everyday functionality.

1 year warranty
